Through Hole Ferrite Core Wideband RF Transformers SWB1010-PCL / SWB1015-PCL / SWB2010-PCL
Features:
- Surface Mount and Through Hole versions
- 500 Vrms, one minute interwinding isolation (hipot)
- 250 mA max current rating; 1/4 Watt RF input power
| Part number |
Impedance
ratio
pri:sec
|
IDC max
(mA)
|
Frequency
(MHz)
|
Pins 1–3
Lmin (µH)
|
Pins 1–3
DCRmax
(Ohms)
|
Pins 6–4
Lmin
(µH)
|
Pins 6–4
DCR max
(Ohms)
|
| SWB1010-PCL |
1:1 |
250 |
0.005–100 |
780 |
0.320 |
780 |
0.320 |
| SWB1010-1-PCL |
1:1 |
250 |
0.04–175 |
95 |
0.200 |
95 |
0.200 |
| SWB1015-PCL |
1.5:1 |
250 |
0.1–150 |
80 |
0.145 |
51 |
0.130 |
| SWB1040-PCL |
4:1 |
250 |
0.2–300 |
95 |
0.160 |
25 |
0.115 |
| SWB2010-PCL |
1:1 |
250 |
0.005–100 |
780 |
0.320 |
780 |
0.320 |
| SWB2010-1-PCL |
1:1 |
250 |
0.04–175 |
95 |
0.200 |
95 |
0.200 |
| SWB2040-PCL |
4:1 |
250 |
0.2–300 |
95 |
0.160 |
25 |
0.115 |
| SWB3010-PCL |
1:1 |
250 |
0.005–100 |
780 |
0.320 |
780 |
0.320 |
| SWB3010-1-PCL |
1:1 |
250 |
0.04–175 |
95 |
0.200 |
95 |
0.200 |
| SWB3015-PCL |
1.5:1 |
250 |
0.1–150 |
80 |
0.145 |
51 |
0.130 |
| SWB3040-PCL |
4:1 |
250 |
0.2–300 |
95 |
0.160 |
25 |
0.115 |

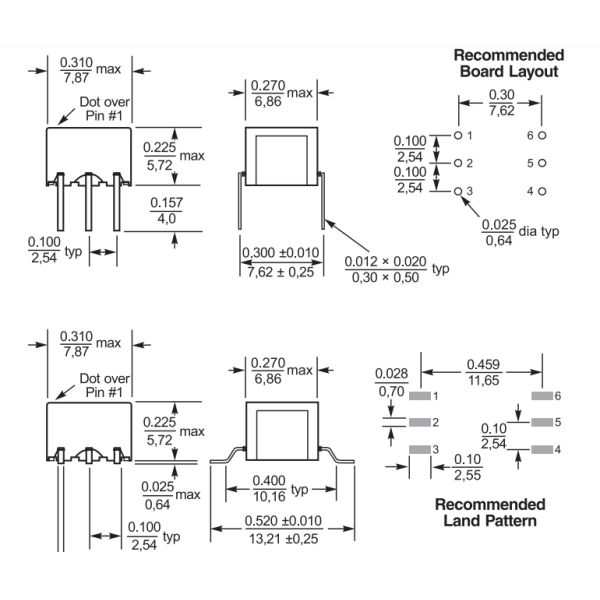

Shape and Dimensions:
Product picture:
Through Hole Ferrite Core Wideband RF Transformers SWB1010-PCL / SWB1015-PCL / SWB2010-PCL
