Surface Mount Quad Port Ethernet Magnetic Transformers MOX-LAN-QP4B-1140 10/100/1000 BASE-T

Brand Name : Shareway

Model Number : MOX-LAN-QP4B-1140

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Part number : MOX-LAN-QP4B-1140 10/100/1000 BASE-T Surface Mount Quad Port Transformers

Speed : 10/100/1000 BASE-T

Mount type : Surface Mount

Port : Quad

Application : Transceiver

Feature : Sealed bottom

Contact Now

MOX-LAN-QP4B-1140 10/100/1000 BASE-T Surface Mount Quad Port Transformers

FEATURES:

  • Symmetrical TX and RX channels for auto MDI/MDIX compatibility.
  • Meets IEEE 802.3 & ANSI X3.263 standards.
  • 350μH OCL with 8mA bias.
  • RoHS compliant.
  • Sealed bottom case design.

Insertion Loss

Return Loss
(dB Typ)

Crosstalk
(dB Typ) 		Differential to
Common Mode
Rejection
(dB TYP.)		 HiPot
Part Number 0.1 ~ 100
MHz		 2~30
MHz		 40
MHz		 50
MHz		 60~80
MHz		 1
KHz		 30
KHz		 60
KHz		 100
KHz		 1~60
MHz		 60~200
MHz

HiPot

(Vrms)
MOX-LAN-QP4B-1140 -1.0 -18 -14.4 -13.1 -12 -65 -50 -40 -35 -40 -35 1500
MOX-LAN-QP4B-1111 -1.0 -18 -14.4 -13.1 -12 -65 -50 -40 -35 -40 -35 1500
MOX-LAN-QP4B-1164 -1.0 -18 -14.4 -13.1 -12 -55 -45 -40 -33 -37 -25 1500
MOX-LAN-QP4B-1134 -1.4 -18 -14.4 -13.1 -12 -55 -45 -40 -33 -37 -25 1500
MOX-LAN-QP4B-1142 -1.0 -16.5 -16 -15.5 -12 -60 -43 -38 -33 -43 -27 1500

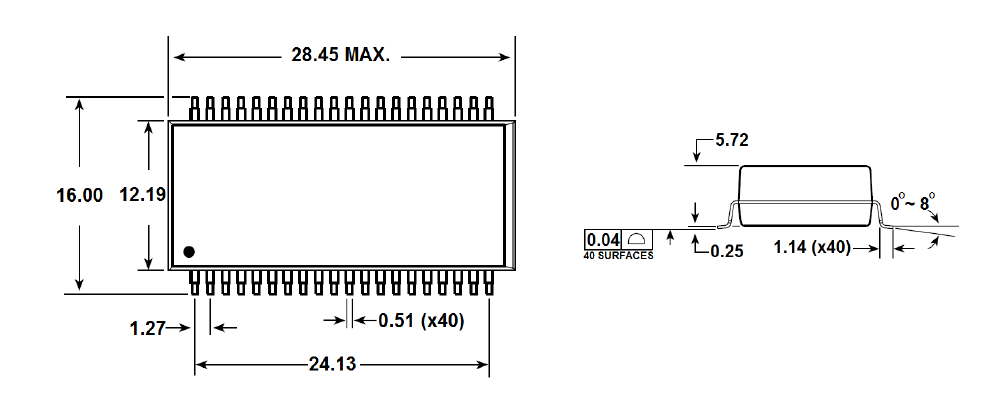

Dimensions:

Surface Mount Quad Port Ethernet Magnetic Transformers MOX-LAN-QP4B-1140 10/100/1000 BASE-T
