Magnetic Shield Construction SMD Power Inductor MHA302512NSGR22M / MHA302512NSG150M

Brand Name : Shareway

Model Number : MHA302512NSGR22M / MHA302512NSG150M

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : MHA302512NSGR22M / MHA302512NSG150M 3.2X2.5X1.2mm Battery inductor

Size : 3.2X2.5X1.2mm

Indutor : Battery inductor

Inductance : 0.12uH~15uH

Type : Magnetic shield construction

Application : Power supplies

Contact Now

MHA302512NSGR22M / MHA302512NSG150M 3.2X2.5X1.2mm Battery inductor


Description:

  • Place of Origin:China (Mainland)
  • Brand Name: Shareway technology
  • Inductor : integrity inductor
  • Product name: integrated smd power inductor for car electronics
  • Inductance:0.47uh-2.2uh
  • Material: Magnetic powder
  • Coil: Embeded
  • Current range: 3.5A-6.3A
  • Temperature rise: ≤40°C
  • Dielectric strength: >150V
  • Operating temperature: -20 ° C ~ +85 ° C

Part number Inductance (uH±20%) DCR(mΩ)@25℃ TYP DCR(mΩ)@25℃ Max Irms(A) Isat(A)
MHA302515NSGR47M 0.47 13 16 6.3 7.2
MHA302515NSG1R0M 1.0 27 33 4.0 4.6
MHA302515NSG2R2M 2.2 73 88 3.5 3.7

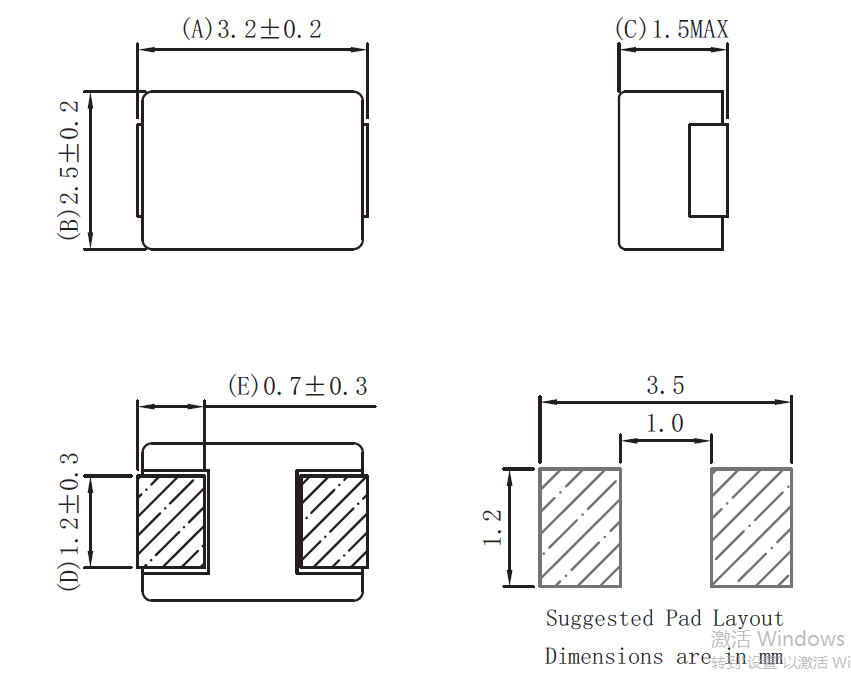

Dimensions:

Magnetic Shield Construction SMD Power Inductor MHA302512NSGR22M / MHA302512NSG150M
