POE300F-33L_ Flyback Transformers For 30 Watt PoE Applications

Name: POE300F33L Flyback Transformers For 30 Watt PoE Applications
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : POE300F-33L_

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal,

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 175pcs/Reel

Product name : POE300F-33L_ Flyback Transformers For 30 Watt PoE Applications

Core material : Ferrite

Weight : 11.9 g

Application : For 30 Watt PoE Applications

Size : 20.57mm*30.00mm*11.43mm

PoE : With PoE

Contact Now

POE300F-33L_ Flyback Transformers For 30 Watt PoE Applications

Feature:

• Designed for active clamp forward topology
• Operates at 200 kHz, with 36 – 72 Volt input
• Includes a 12-Volt auxiliary winding
• Isolation: 1500 Vrms, one minute primary and aux to secondary;
500 Vrms primary to auxiliary

Core material: Ferrite
Terminations : RoHS tin-silver over tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight : 11.9 g
Ambient temperature: –40°C to +125°C
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max : three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1: (unlimited floor life at <30°C /
85% relative humidity)

Part number	Inductance at 0 A ±10% (μH)	Inductance at Ipk min (μH)	DCR max (Ohms)			Leakage inductance max (μH)	Turns ratio		Ipk (A)	Output
Part number	Inductance at 0 A ±10% (μH)	Inductance at Ipk min (μH)	pri	sec	aux	Leakage inductance max (μH)	pri : sec	pri : aux	Ipk (A)	Output
POE300F-33L_	42.0	37.8	0.070	0.0023	0.220	3.00	1 : 0.09	1 : 0.33	2.6	3.3 V, 9 A
POE300F-50L_	42.0	37.8	0.069	0.0050	0.225	1.60	1 : 0.14	1 : 0.33	2.6	5 V, 6 A
POE300F-12L_	42.0	37.8	0.061	0.015	0.195	0.545	1 : 0.33	1 : 0.33	2.6	12 V, 2.5 A
POE300F-19L_	42.0	37.8	0.060	0.037	0.195	0.430	1 : 0.56	1 : 0.33	2.6	19.5 V, 1.5 A
POE300F-24L_	42.0	37.8	0.060	0.055	0.195	0.310	1 : 0.67	1 : 0.33	2.6	24 V, 1.25 A

POE300F-33L_ Flyback Transformers For 30 Watt PoE Applications

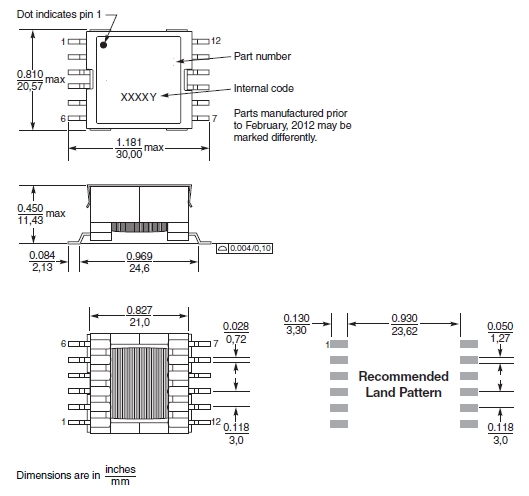

Shape and Dimensions:

POE300F-33L_ Flyback Transformers For 30 Watt PoE Applications

Product picture:
