Ferrite Core 6.48mm4.45mm7.2mm Bias Injection Choke KA4909-AL_

Name: Ferrite Core 648mm445mm72mm Bias Injection Choke KA4909AL
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : KA4909-AL_

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 5000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Reel ,Tube

Product name : Ferrite Core 6.48mm*4.45mm*7.2mm Bias Injection Choke KA4909-AL_

Core material : Ferrite

Terminations : tin-silver-copper over tin over nickel over phos bronze

Weight : 220 mg

Ambient temperature : –40°C to +105°C

Size : 6.48mm*4.45mm*7.2mm

Contact Now

Ferrite Core 6.48mm*4.45mm*7.2mm Bias Injection Choke KA4909-AL_

Product Description:

Developed for use with Texas Instruments DS90UB901Q serializer
and DS90UB902Q deserializer for Low-Voltage Differential
Signaling (LVDS) applications.
This center tapped inductor provides over 1 kOhm impedance
from 1 MHz – 800 MHz.
Can be used with additional 10 μH and 1 μH inductors to achieve
even wider band differential signal rejection.
AEC-Q200 Grade 3 (–40°C to +85°C) qualified

Feature:

Core material Ferrite
Terminations RoHS compliant tin-silver-copper over tin over nickel
over phos bronze.
Weight 220 mg
Ambient temperature –40°C to +105°C
Storage temperature Component: –40°C to +105°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)

Part

number

Inductance

±25% (μH)

DCR max

(Ohms)

Irms

(mA)

KA4909-AL_

169

0.46

650

Ferrite Core 6.48mm*4.45mm*7.2mm Bias Injection Choke KA4909-AL_

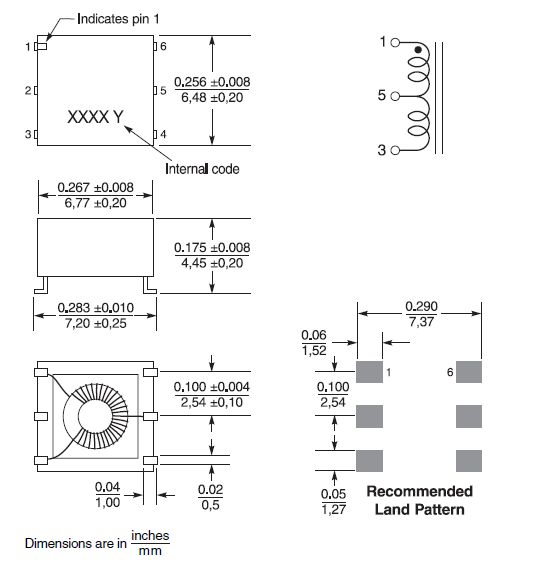

Shape and Dimensions:

Product picture:

Ferrite Core 6.48mm*4.45mm*7.2mm Bias Injection Choke KA4909-AL_
