MSC1278-103ML_ coupled inductor are designed with high leakage inductance

Name: MSC1278103ML coupled inductor are designed with high leakage inductance
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : MSC1278-103ML_

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : 1000K.PCS/Month

Packaging Details : 500 parts per full reel

Product name : MSC1278-103ML_ coupled inductors are designed with high leakage inductance

Type : coupled inductor

Usage : SEPIC applications

Size : 12.3*12.3*8.5

Use as : two single inductors

Inductance : 10 ±20%

Contact Now

MSC1278-103ML_ coupled inductors are designed with high leakage inductance

Description:

The MSC1278 coupled inductors are designed with
high leakage inductance for use in SEPIC applications.
The loosely coupled windings (K ≈ 0.8) improve SEPIC
efficiency by reducing circulating current and provide
twice the ripple current reduction of separate inductors.
These inductors offer high efficiency and excellent current
handling in a rugged, low cost part. They are well
suited for use as a VRM inductors in high-current DC-DC
converters and VRM/VRD controllers.
They can also be used as two single inductors connected
in series or parallel.

Part number	Inductance (μH)	DCR max (mOhms)	SRF typ (MHz)	Coupling coefficient typ	Leakage inductance typ (μH)	Isat (A)			Irms (A)
Part number	Inductance (μH)	DCR max (mOhms)	SRF typ (MHz)	Coupling coefficient typ	Leakage inductance typ (μH)	10% drop	20% drop	30% drop	both windings	one windings
MSC1278-103ML_	10 ±20%	0.058	20	0.80	2.75	8.80	10.0	10.66	2.56	3.62
MSC1278-223KL_	22 ±10%	0.096	12	0.82	5.85	6.00	6.80	7.26	1.99	2.81
MSC1278-333KL_	33 ±10%	0.15	9.5	0.85	10.1	5.50	6.10	6.52	1.59	2.25
MSC1278-473KL_	47 ±10%	0.18	7.8	0.83	14.5	3.70	4.34	4.60	1.45	2.05

MSC1278-103ML_ coupled inductors are designed with high leakage inductance

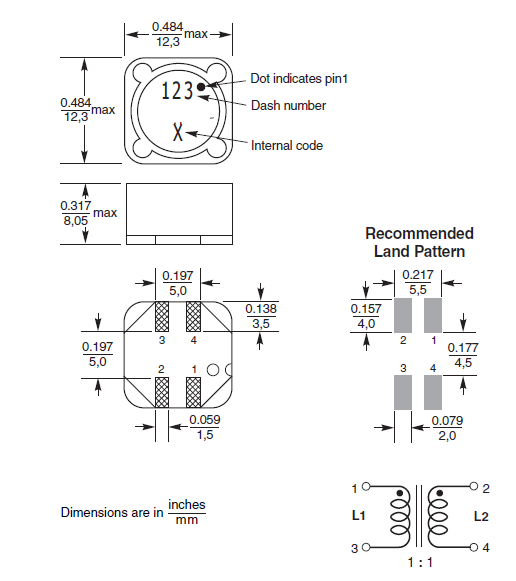

Shape and Dimensions:
