MOX-SPI-5050F SMD Power Inductor High Current Iron Powder Core Low Cost

Product Categories
SHAREWAY TECHNOLOGY CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

MOX-SPI-5050F SMD Power Inductor High Current Iron Powder Core Low Cost

Brand Name : Shareway

Model Number : MOX-SPI-5050F

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 500PCS/REEL

Product name : High current iron powdered core SMD Power Inductor MOX-SPI-5050F

Industrial operating temperature : -55°C to +125°C

Shielded : Shielded construction

Inductance : 0.10 - 10uH

Frequency : 100KHZ, 0.1V

Irms : 10-60.0A

Contact Now

High current iron powdered core SMD Power Inductor MOX-SPI-5050F

Description:

  • Low cost.
  • High current iron powdered core.
  • Low profile package design.
  • Industrial operating temperature: -55°C to +125°C.
  • Shielded construction.
  • Tape & Reel packaging available. (500 pieces per reel)
  • RoHS compliant.

Part Number Initial
Inductance
(μH)
Idc = 0A		 Tolerance
(%)		 Test
Frequency		 Irms
(A)
Maximum		 Isat
(A)
Maximum		 RDC
(Ω)
Typical		 RDC
(Ω)
Maximum
MOX-SPI-5050F-R10M 0.10 20% 100KHZ, 0.1V 60.0 120.0 0.00047 0.00050
MOX-SPI-5050F-R33M 0.33 20% 100KHZ, 0.1V 46.0 80.0 0.00083 0.00090
MOX-SPI-5050F-R36M 0.36 20% 100KHZ, 0.1V 45.0 78.0 0.00081 0.00095
MOX-SPI-5050F-R47M 0.47 20% 100KHZ, 0.1V 42.0 72.0 0.0010 0.0012
MOX-SPI-5050F-R68M 0.68 20% 100KHZ, 0.1V 37.0 60.0 0.0014 0.0015
MOX-SPI-5050F-1R0M 1.00 20% 100KHZ, 0.1V 32.0 50.0 0.0017 0.0018
MOX-SPI-5050F-1R5M 1.50 20% 100KHZ, 0.1V 26.0 43.0 0.0025 0.0030
MOX-SPI-5050F-2R2M 2.20 20% 100KHZ, 0.1V 23.0 40.0 0.0035 0.0040
MOX-SPI-5050F-3R3M 3.30 20% 100KHZ, 0.1V 20.0 35.0 0.0057 0.0065
MOX-SPI-5050F-4R7M 4.70 20% 100KHZ, 0.1V 16.0 30.0 0.0095 0.0112
MOX-SPI-5050F-6R8M 6.80 20% 100KHZ, 0.1V 12.0 20.0 0.0132 0.0140
MOX-SPI-5050F-8R2M 8.20 20% 100KHZ, 0.1V 11.0 18.0 0.0145 0.0150
MOX-SPI-5050F-100M 10.00 20% 100KHZ, 0.1V 10.0 17.0 0.0165 0.0172

High current iron powdered core SMD Power Inductor MOX-SPI-5050F

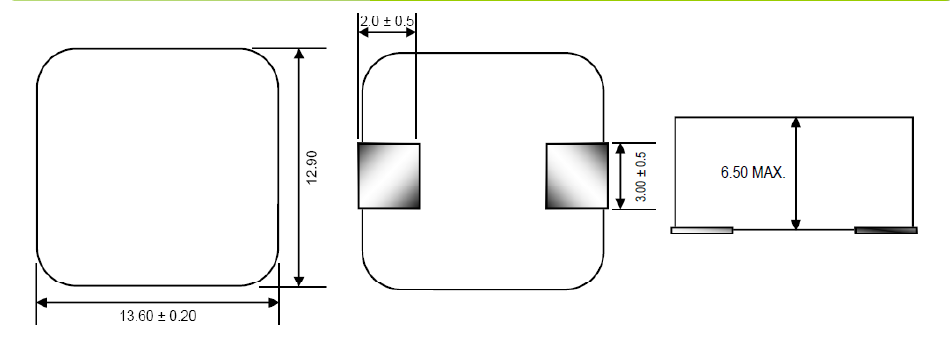

Shape and Dimensions:

MOX-SPI-5050F SMD Power Inductor High Current Iron Powder Core Low Cost


Product Tags:

dc dc converter inductor



high current power inductors


Quality MOX-SPI-5050F SMD Power Inductor High Current Iron Powder Core Low Cost wholesale

MOX-SPI-5050F SMD Power Inductor High Current Iron Powder Core Low Cost Images
